Beiben 8x8 offroad Lube and Diesel Combo truck is designed and produced for multiple purpose, which designed with multiple tanker assembly and matched with hose reel for different purpose. Including fuel tank, gear oil tank, engine oil tank, grease pod tank, waste oil tank, coolant tank, windshield washer fluid tank, etc. All matched with 15m horse reel and refueling gun, designed as an ideal service truck for all requirement. Below are customized Beiben 4142 lube service truck.
| Truck Model | Beiben 8x8 Lube Trucks |
| Engine | WP12.420E32, 420HP / 11596cc |
| Transmission | FAST 12 shift, 12F and 2R |
| Fuel Tanker | 10000L~20000L |
| Gear Oil | 500L~1000L |
| Engine Oil | 500L~2000L |
| Grease Pod | 500L~1500L |
| Waste Oil | 500L~2000L |
| Coolant | 500L~1000L |
| Windshield Fluid | 200L |
 |
 |

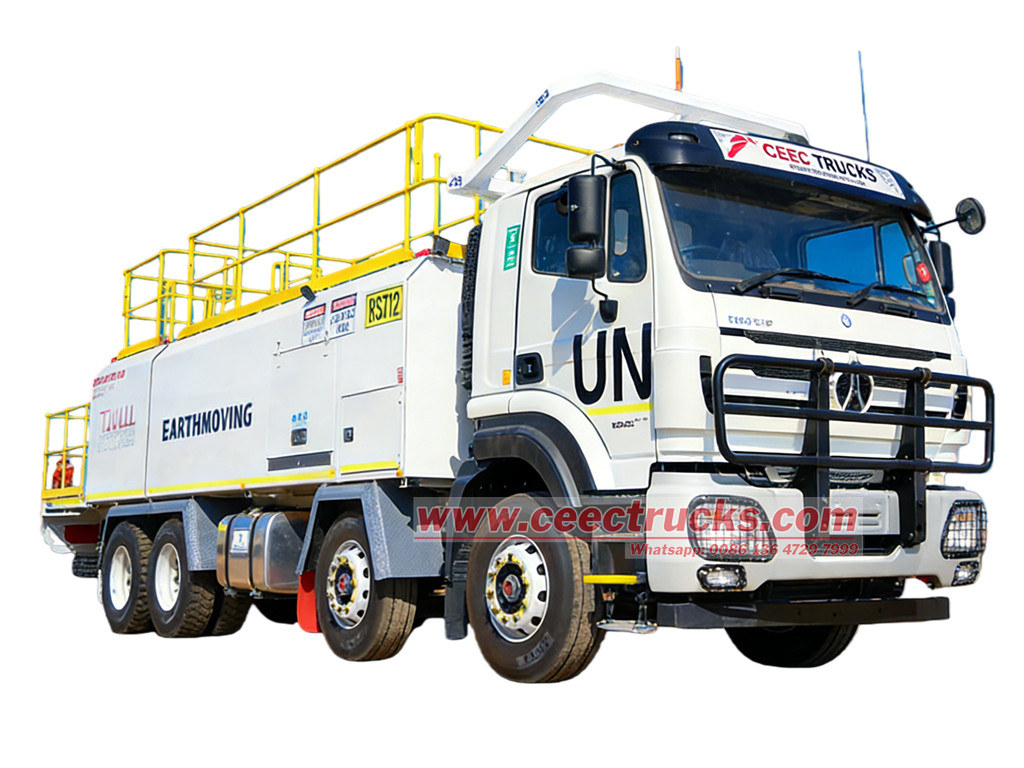

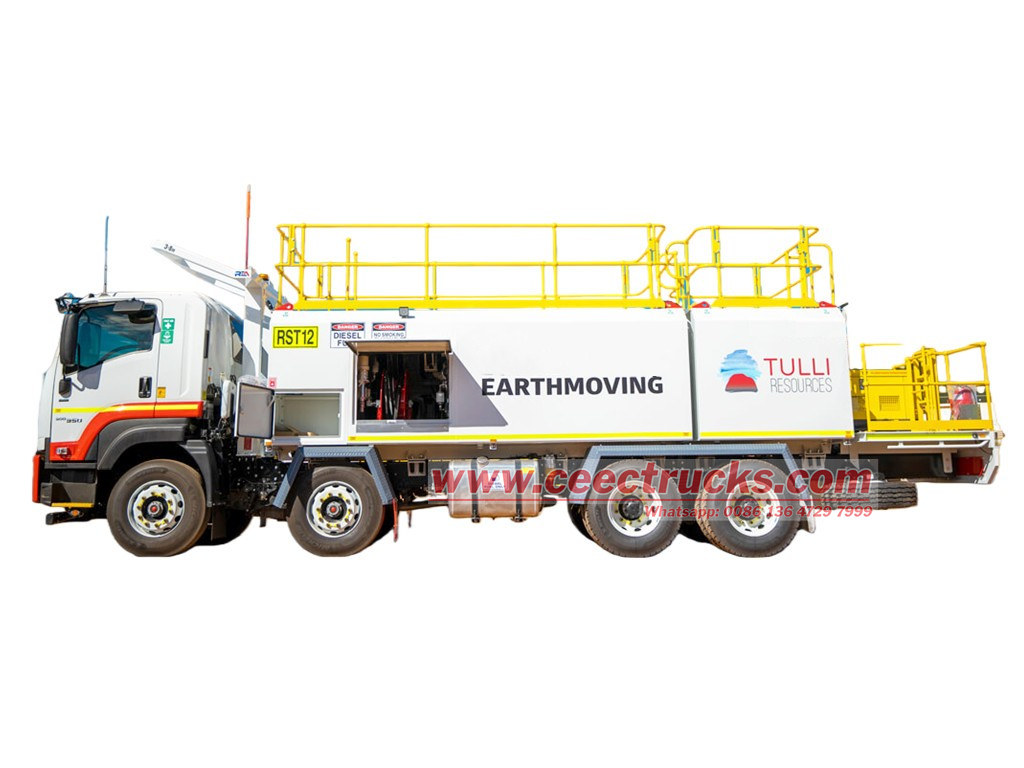

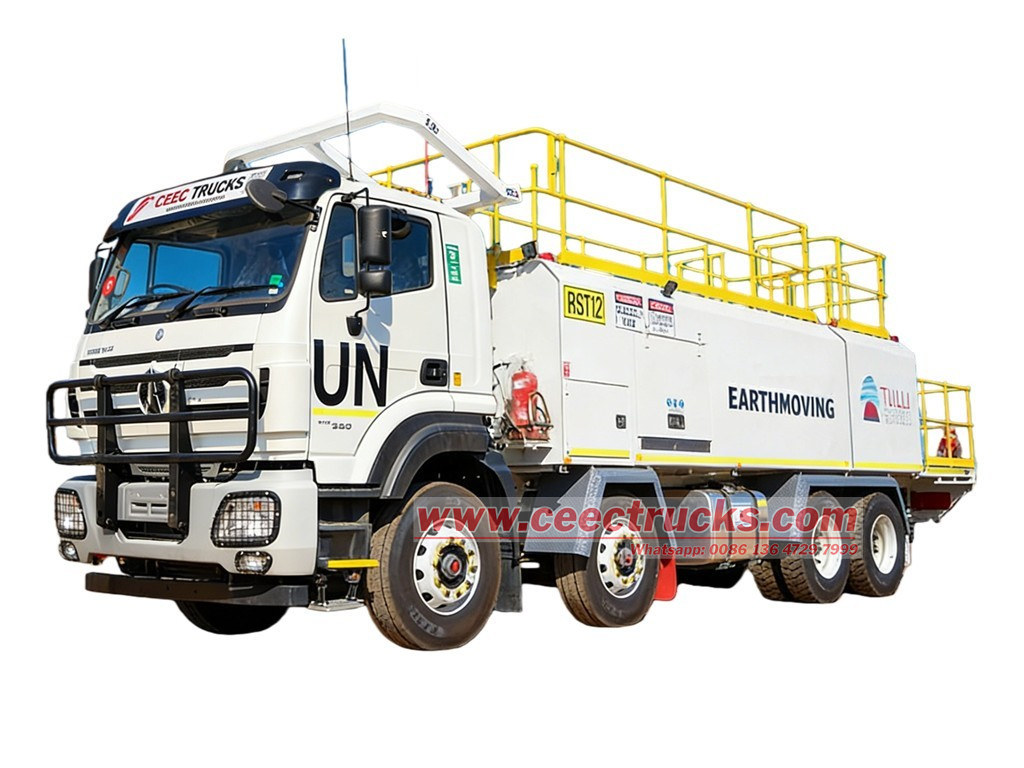

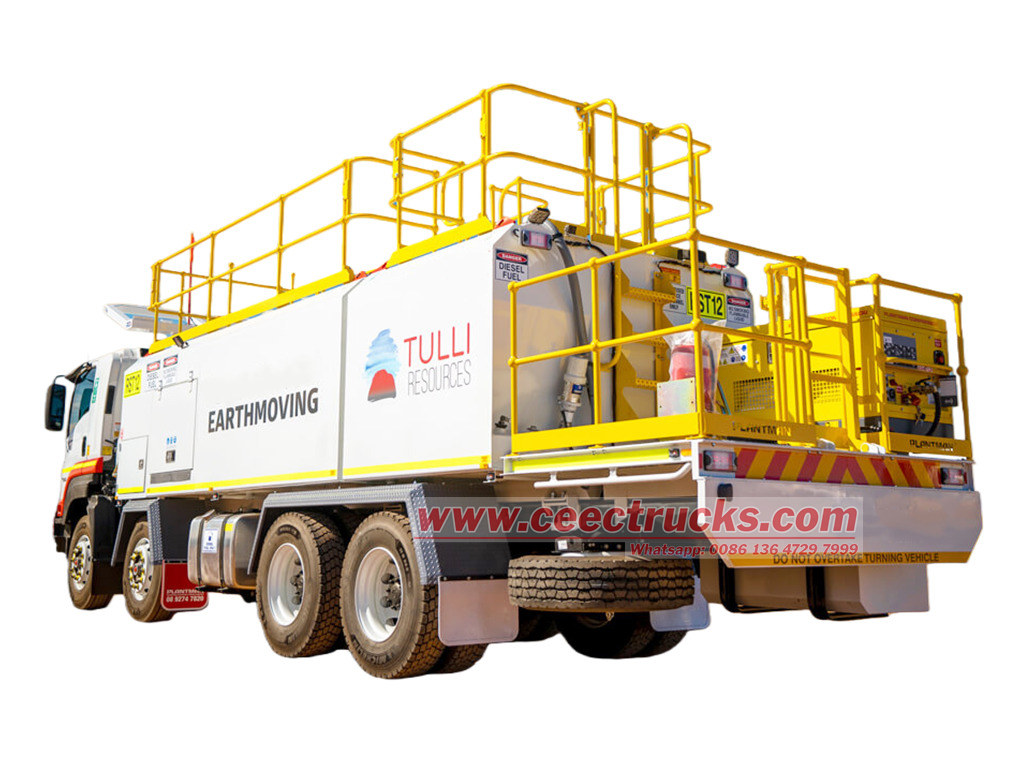

| Beiben 4142 offroad 8x8 lube service tanker truck | Beiben 8x8 combined lube refueling truck |

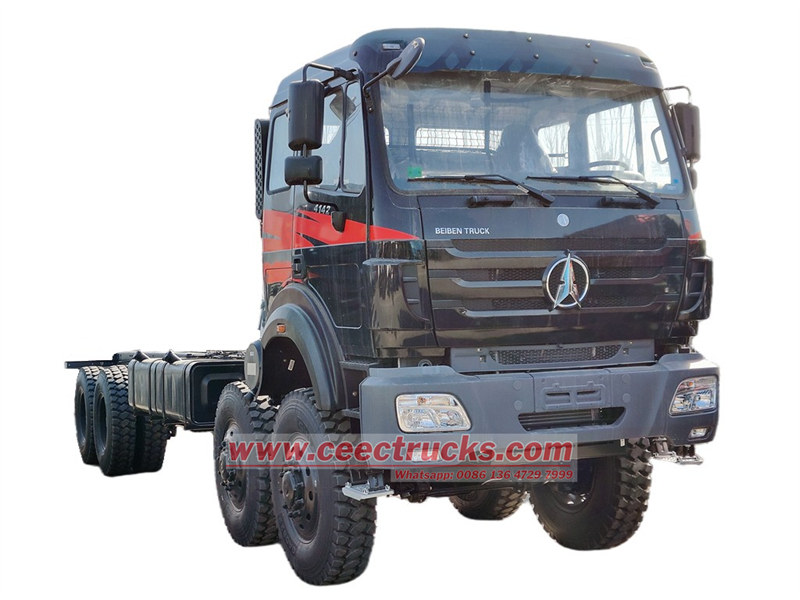

Beiben 8x8 AWD 4142 cargo truck chassis
China North Benz 4142 model cargo truck, LHD and RHD optional for different countries, equipped with Merdeces Benz NG80B long cabin, AC and air suspension seat. Equipped with 420HP diesel engine and FAST 12 shift manual gearbox, higher power output and lower fuel consumption. Customized 14.00R20 tires very suitable for wildland driving.
| Model | Beiben 4142 offroad cargo truck |
| Driving | 8x8 all wheel drive |
| Engine | WP12.420E32 diesel engine 420HP |
| Tranmission | FAST 12JS200T |
| Cabin | NG80B long cabin with sleeper |
| Wheelbase | 1500+5050+1450mm |
| Tire | 14.00R20, 12.00R24 |
| Fuel Tanker | 400L + 400L |
| Ground Clearance | 339mm |
| Painting | As request white, blace, blue, yellow, etc |
 |
 |

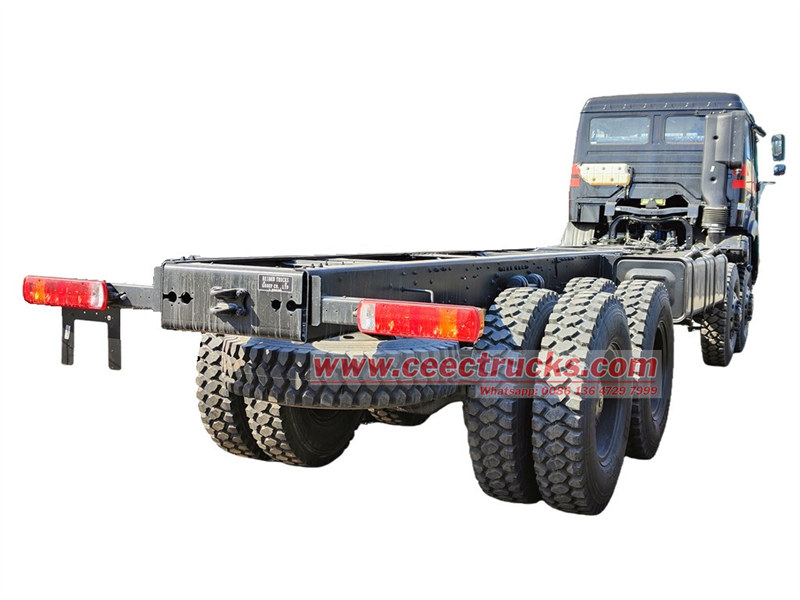

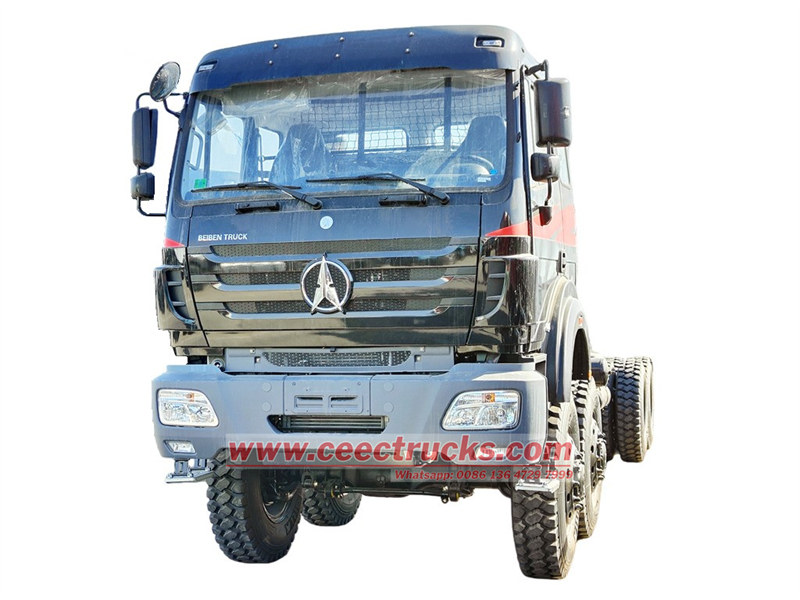

| Beiben 8x8 truck chassis | Beiben 4142 cargo truck chassis |
Design of Beiben 8x8 offroad Lube and Diesel Combo Service Truck

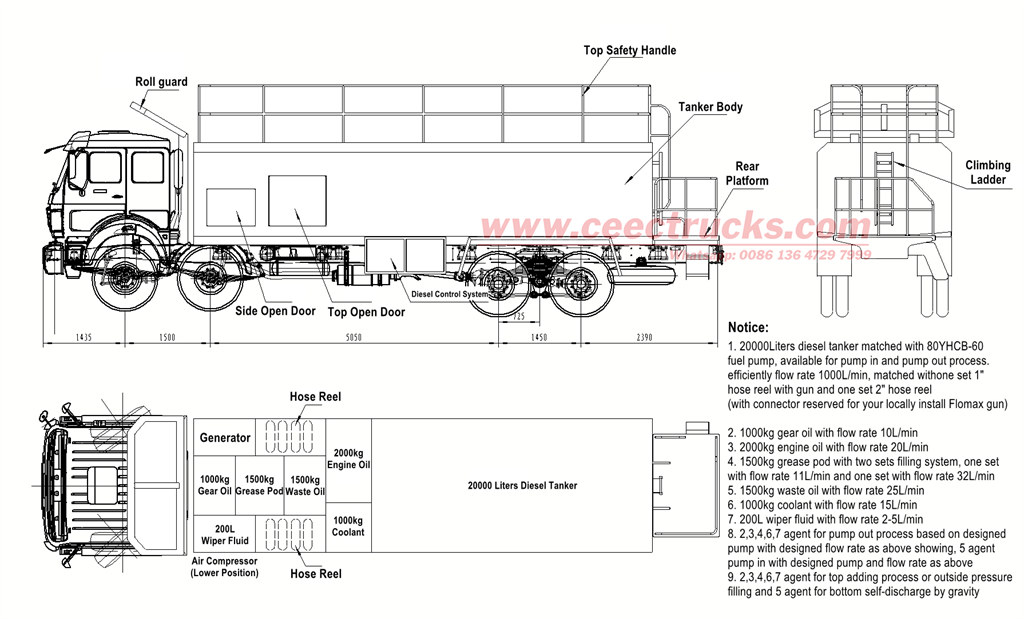

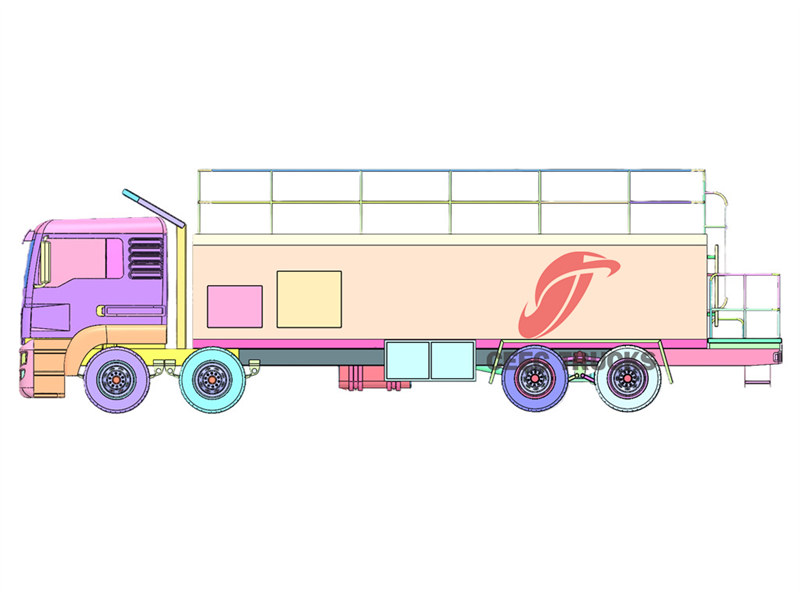

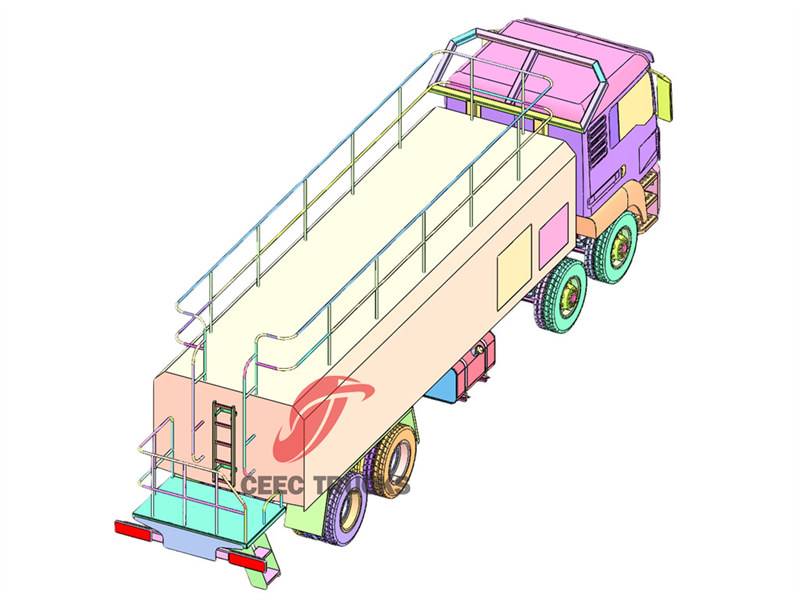

Beiben 4142 heavy duty 8x8 offroad truck mounted combined lube and diesel refueling system, this type service truck equipped with wildland type 14.00R20 tire, specialized for mining project trucks and equipment service. CEEC TRUCKS Engineer Department prepare official drawing for clients checking, then design the upper body kit based on clients requirement, both technical drawing and 3D drawing can be prepared for checking and confirm.

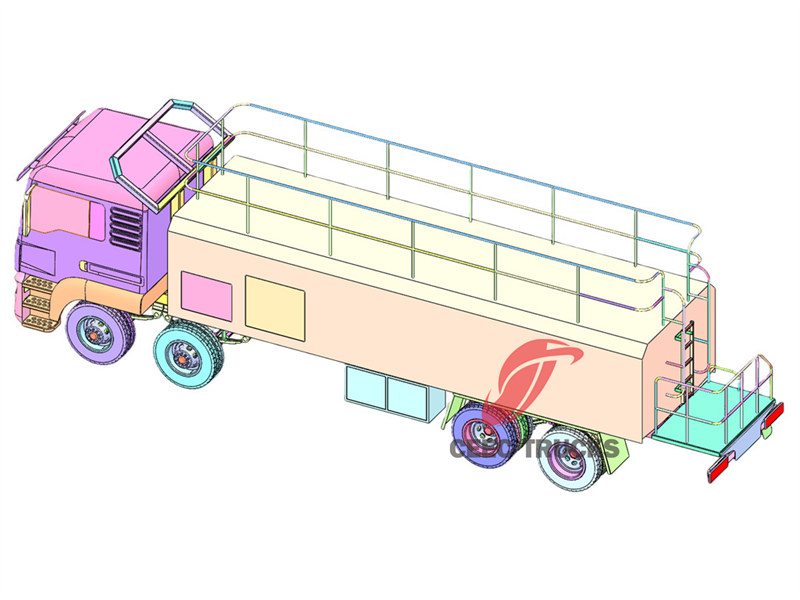

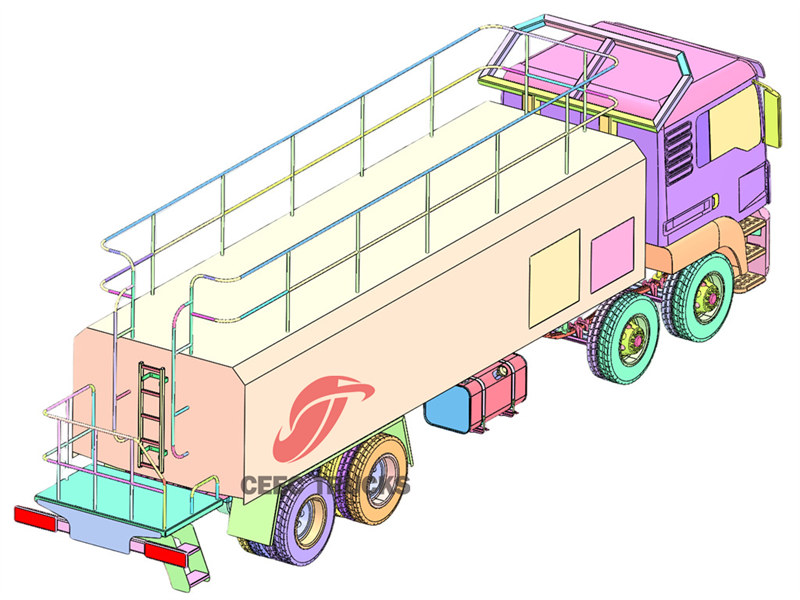

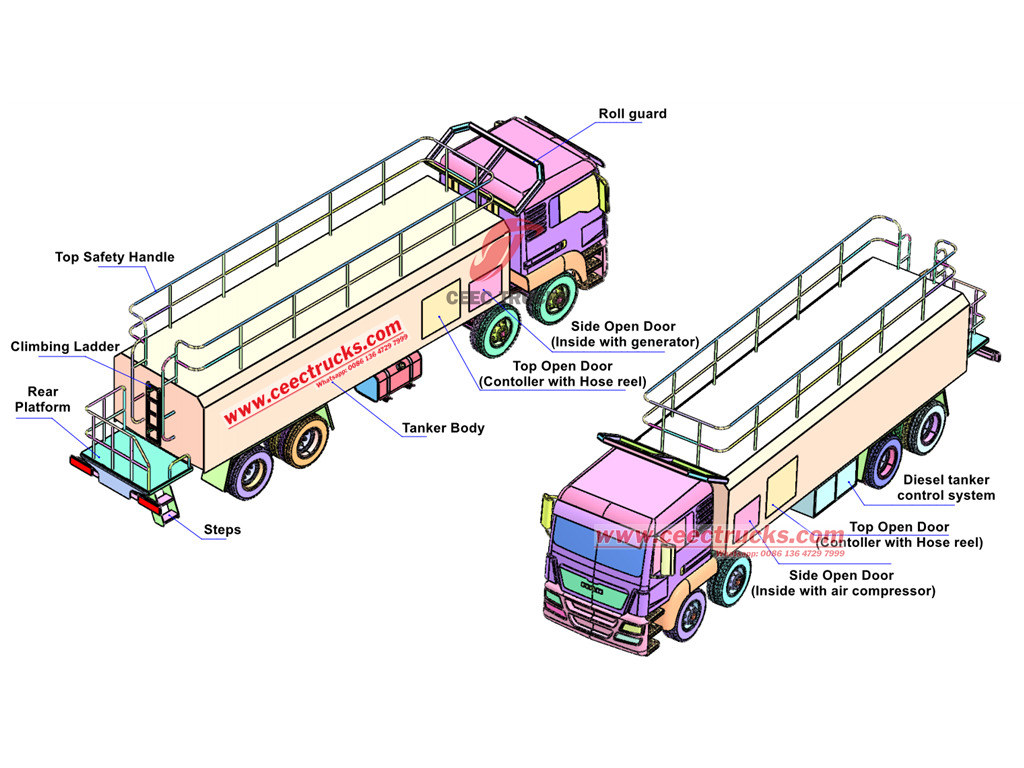

3D drawing for Lube Trucks
Available in wide range of sizes to suit any job, including 4x4 lube service truck, 6x6 lube truck, 8x8 service truck, etc. CEEC TRUCKS Lube Trucks are designed for quick on-site maintenance. The customized trucks can help reduce downtime and guarantee clients machines efficiently working all the time. Engineered with flexibility in mind, these service trucks provide efficient mobile servicing wherever and whenever needed.
