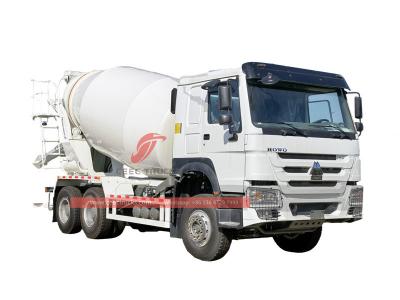

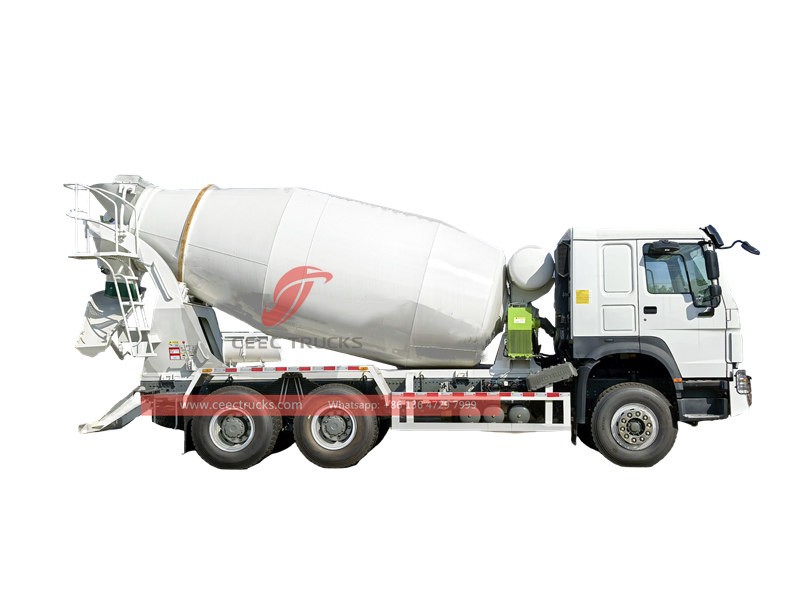

HOWO heavy concrete mixer truck is that integrates advanced technology and practical performance, fully demonstrating the excellence of C EEC trucks group in the field of heavy duty commercial vehicles. T he vehicle is equipped with an engine model WP10.340E22 , which is a 9.726 L inline 6 cylinder diesel engine. It adopts advanced technologies such as high pressure common rail, turbocharged intercooler and EGR, but also outputs a maximum power of 105kW, fully guaranteeing the power performance of the HOWO heavy duty concrete mixer truck.
Năng lực làm việc:
10CBMKích thước (mm):
9300×2500×3500 mmChiều dài cơ sở ( mm ):
4500+1370 mmCông suất động cơ:
340HPLoại động cơ:
WP10.340E22Trục truyền động:
6x4, LHDHộp số:
HW 10 shiftNhận xét:
6X6, RHD drive type avaiableCái HOWO heavy concrete mixer truck is that integrates advanced technology and practical performance, fully demonstrating the excellence of C EEC trucks group in the field of heavy duty commercial vehicles. T he vehicle is equipped with an engine model WP10.340E22 , which is a 9.726 L inline 6 cylinder diesel engine. It adopts advanced technologies such as high pressure common rail, turbocharged intercooler and EGR, but also outputs a maximum power of 105kW, fully guaranteeing the power performance of the HOWO heavy duty concrete mixer truck.
The rated speed of 2 2 00rpm ensures the stable operation of the engine during mixing operations. The mixing dynamic volume of 10 CBM meets the needs of most small and medium-sized projects, while the water tank volume of 1 cubic meter provides sufficient water source guarantee for concrete mixing.The cab configuration is also quite rich, including electric door and window central lock, air conditioning, cab electric lift, multi-function steering wheel, driver airbag seat, which greatly improves driving comfort and safety.
CEEC factory
is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CEEC Trucks Group
Performance Advantages
1. Efficient Power and Transmission Matching: A Sinotruk 180-horsepower engine paired with a 10-speed transmission delivers high compatibility and efficient power transmission.
2. Scientific Tank Design: Q355 manganese steel with a double-logarithmic spiral curve ensures concrete homogeneity, minimizes residue, and reduces material waste.
3. Convenient and Safe Operation: Linked operation reduces operator workload; pneumatic water supply and a large capacity water tank ensure efficient cleaning.
4. Manageable Maintenance Costs: A modular hydraulic system and domestically produced radiator reduce the difficulty and expense of subsequent repairs.
|
HOWO 10CBM concrete mixer truck Basic information |
|||
|
Driving form |
6X4 |
Body size |
9300×2500×3500 mm |
|
Front suspension/rear suspension |
1.13/1.93 m |
Wheelbase |
4500+1370 mm |
|
Payload |
13 tons |
GVW |
25000 kg |
|
Maximum speed |
95 km/h |
||
|
Remarks |
Imported brand speed reducer, imported brand hydraulic system, tank body adopts Q355 high strength tank steel plate, electric door and window central locking, air conditioning, cab electric lifting, multi-function steering wheel, driver's airbag seat, four-way image, B version smart pass, |
||
|
Engine parameters |
|||
|
Engine model |
WP10.340E22 |
Fuel type |
diesel |
|
Number of cylinders |
6 cylinders |
Maximum output power |
105kW |
|
Maximum horsepower |
340HP |
Displacement |
9.726L |
|
Emission standard |
Euro 3 |
Engine form |
In line 4 cylinder, water cooled, 6 stroke, high pressure common rail, supercharged intercooling, EGR |
|
Upper loading parameter |
|||
|
Vehicle NO. |
CEEC5253SNC |
Vehicle type |
transit mixing truck |
|
Dynamic volume of stirring |
10 m³ |
Water tank volume |
1 CBM |
|
Cab parameters |
|||
|
Cab |
One row cab, forward control type, all welded steel cab of tilt type, rear mechanical cab suspension, adjustable driver seat |
||
|
Gearbox parameters |
|||
|
Gearbox model |
HW19710 |
Number of gears: |
Manual 10 forward & 1 Reverse |
|
Chassis parameters |
|||
|
Chassis brand |
Howo |
Chassis model: |
Heavy duty |
|
Number of tires |
6 |
Tyre size: |
12.00 R20 |

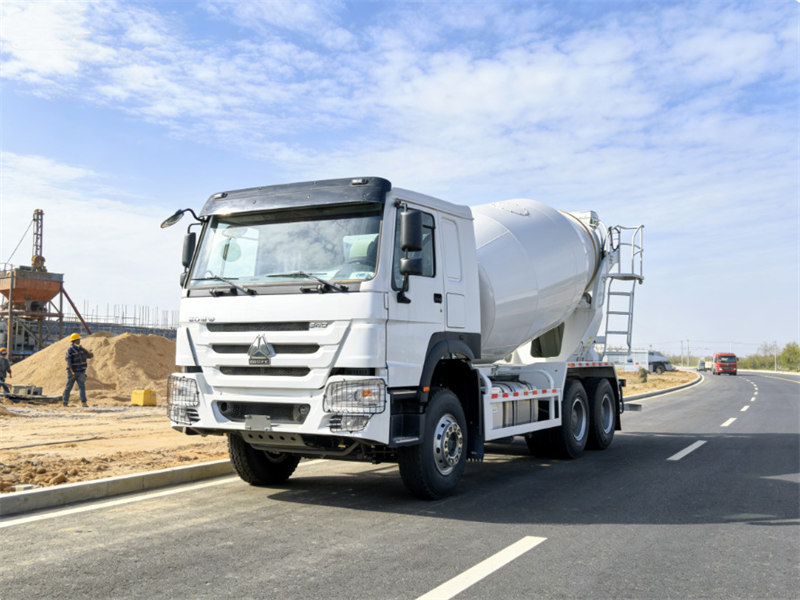

♦ The Howo heavy 10CBM mixer truck has a 6x4 drive system , rear double-axle drive + front axle steering .
♦ R easonable axle load distribution, strong load capacity, usually 28 tons, suitable for heavy load transportation .
♦ E xcellent ability to escape from complex road conditions such as mud and ramps.
♦ It adopts high-strength steel beams with strong torsion resistance, and is equipped with multi-leaf spring suspension, with high load-bearing stability.
♦ Equipped with Weichai technology engine (such as WP10/WP12) + Sinotruk HW series gearbox + wheel reduction bridge .
♦ L ow speed and high torque characteristics are outstanding, suitable for heavy load climbing and continuous operation.
|
|
♦ The Weichai engine has a life of more than 800,000 kilometers .
♦ K ey parts (such as hydraulic pumps and crane slewing mechanisms) are top brands , with a low failure rate.

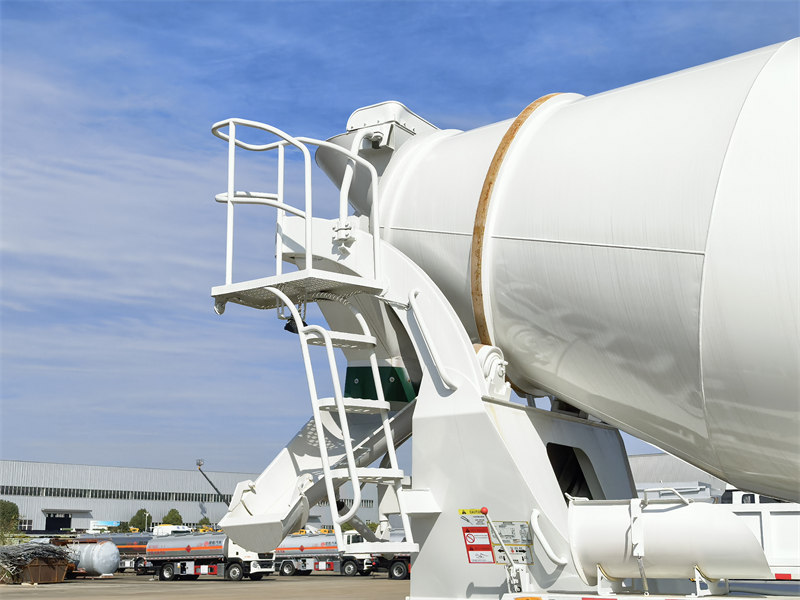

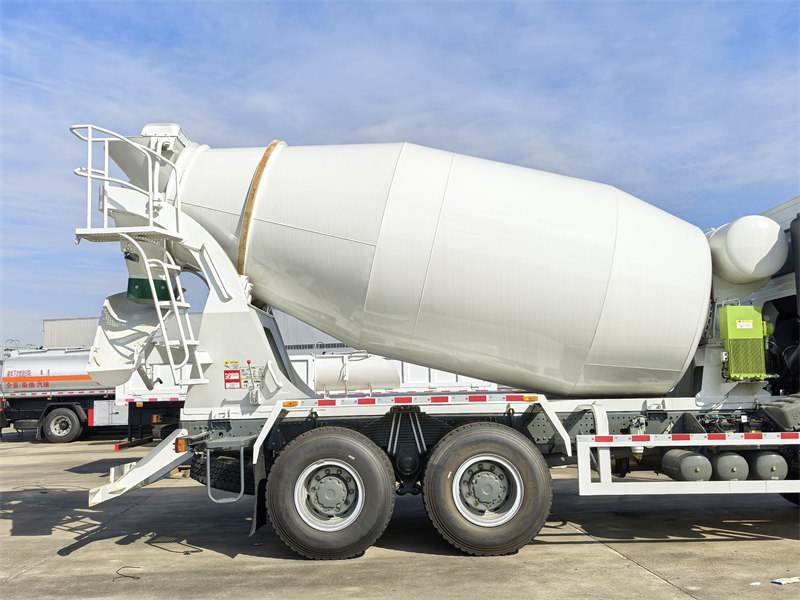

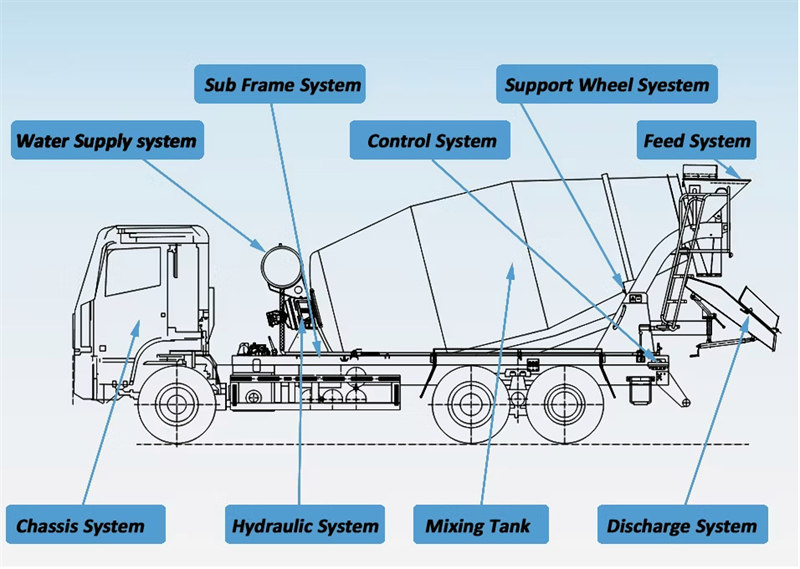

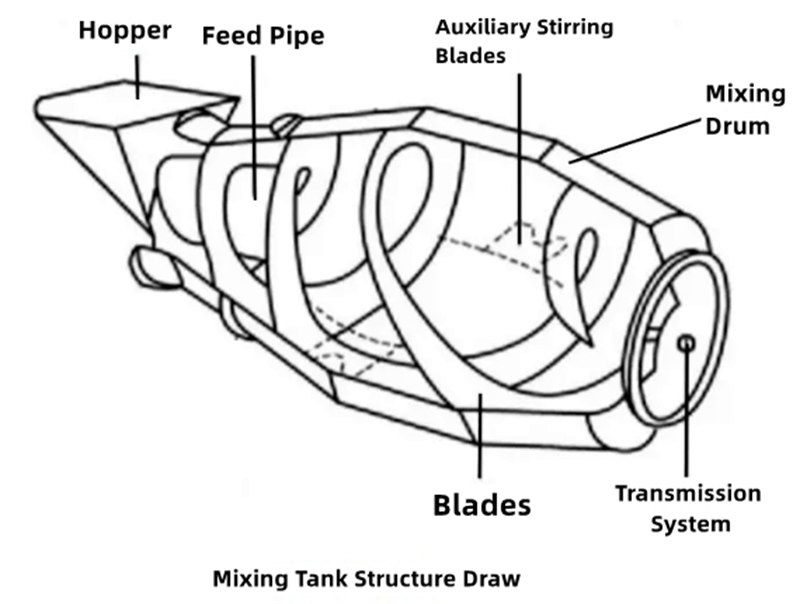

1. 10 CBM Q355 manganese steel tank:
▶ Tank thickness: 5 mm, head thickness: 6mm, high strength and wear resistance, suitable for high-intensity mixing operations.
▶ Double logarithmic spiral curve design optimizes the concrete flow path, reduces segregation, and reduces residue.
2. Core Components
▶ Reducer: Keyi
▶ Hydraulic Pump and Motor: Italy Interpap brand. Highly efficient and reliable, with stable power transmission, ensuring continuous tank rotation.
▶ Radiator: Optimizes heat dissipation, prevents hydraulic system overheating, and extends equipment life.
▶ Water Supply System: 400L water tank, pneumatic water supply.
▶ Air Control Box: Integrated with manual valves, solenoid valves, and pressure switches, it achieves automated control and enhances system stability.
3. Control System

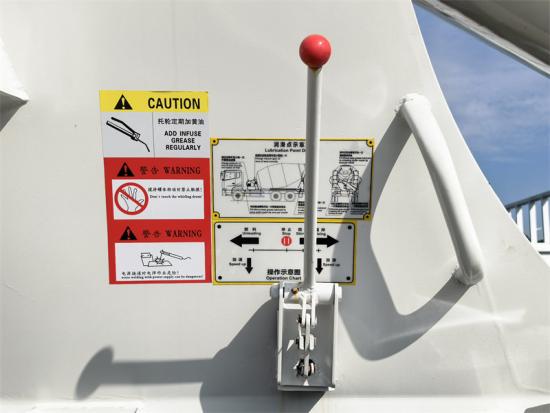

▶ Dual rear joysticks: Support left and right side and cab operation, allowing the operator to easily control tank rotation, discharging, and other actions from different positions.
▶ Linked control design: Streamlines the operating process, improves efficiency, and reduces the risk of misoperation.
The Howo light mixer tank truck is suitable for flexible operation scenarios with high frequency and small batches, such as rural self-built houses, sporadic municipal projects, and "last mile" concrete delivery. It is an important supplement to the heavy-duty mixer truck system.

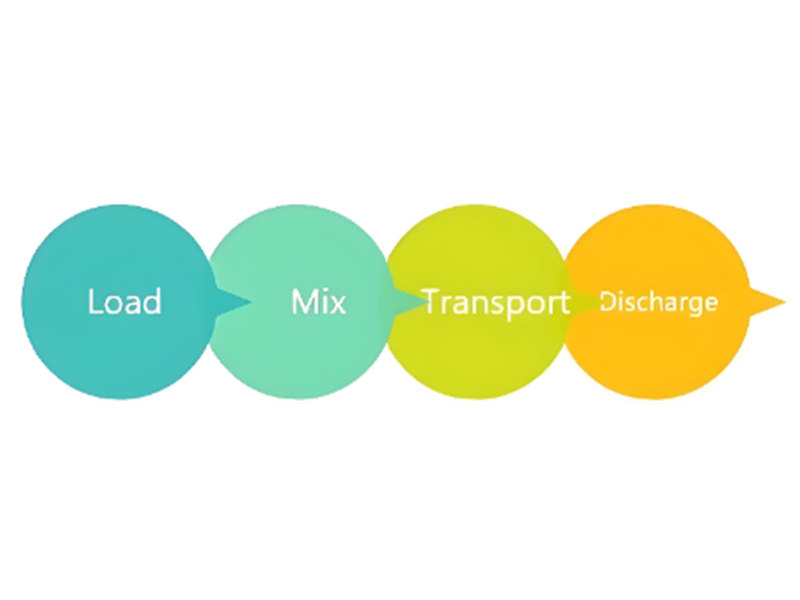

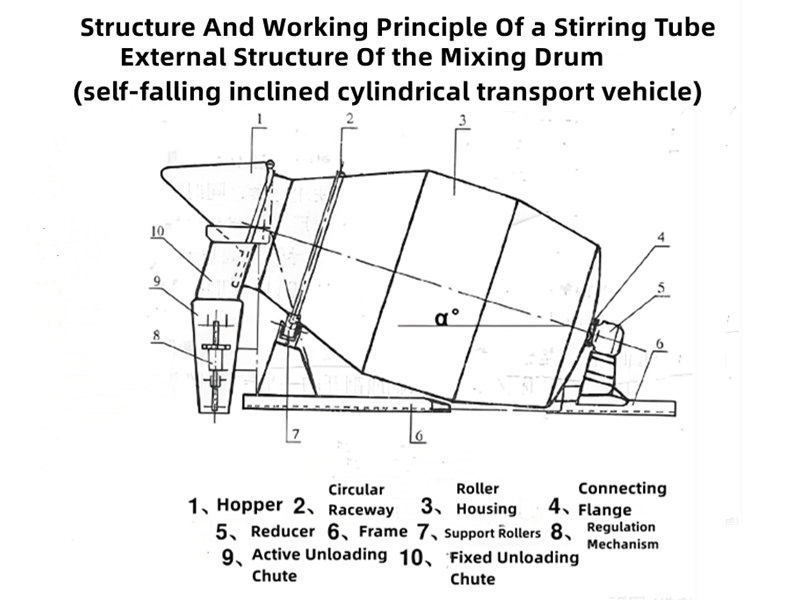

The core operating principle of a truck mixer is power transmission and drum mixing.

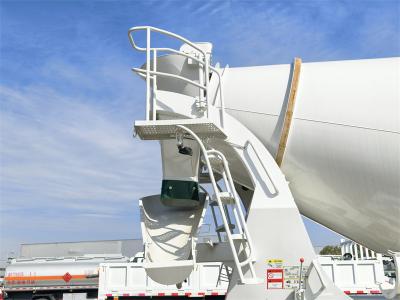

▶ Loading: The truck is loaded with the necessary materials, including cement,water, and aggregates such as sand or gravel. The materials are loaded into the drum through a hatch located on the top of the drum.
▶ Mixing: The drum of the truck is rotated continuously during transportation, which ensures that the concrete remains in a liquid state and is uniformly mixed. The rotation of the drum is powered by a hydraulic system that is typically located on the front of the truck.
▶ Transporting: Once the concrete is mixed, the truck transports it to the construction site. The drum continues to rotate during transportation to prevent the concrete from setting.

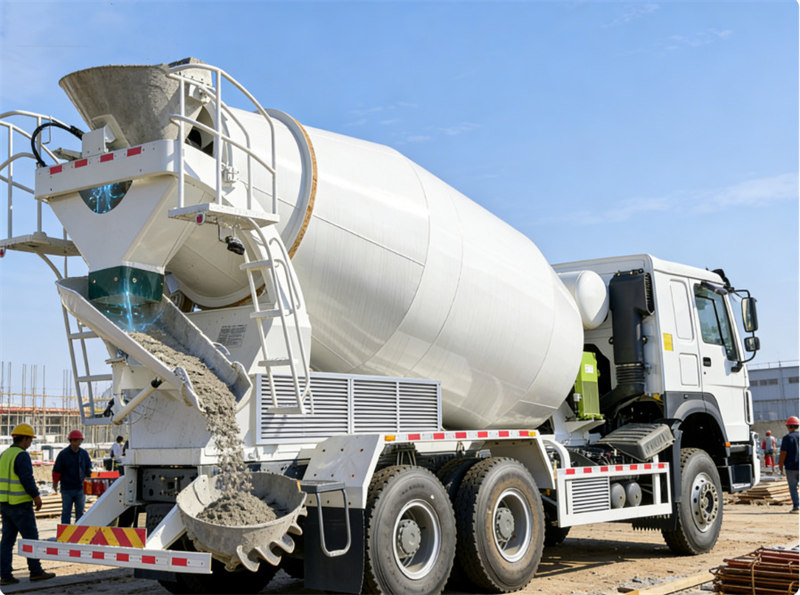

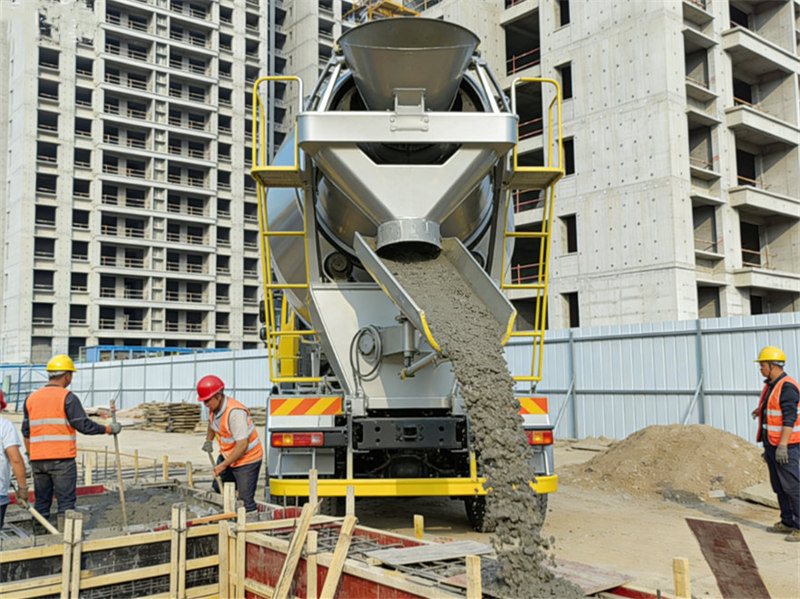

▶ Discharging: When the truck arrives at the construction site, the concrete is discharged from the drum by rotating the drum in the opposite direction.The concrete is discharged through a chute located at the rear of the truck and can be directed to the desired location.
