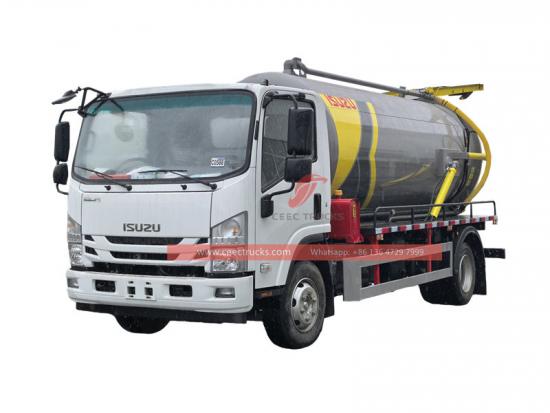

Xe bồn hút chân không Isuzu 8.000 lít dùng trong xử lý nước thải

Trong lĩnh vực vệ sinh đô thị, Isuzu light duty 8 000L s ewage tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a high quality 4HK1 engine with a maximum horsepower of 190 HP, and a powerful vacuum suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 8CBM , and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.

Sự chi trả:
T/T, West Union
Giá thị trường:
$29800
Nguồn gốc sản phẩm:
China CEEC
Cổng vận chuyển:
China main port
Thời gian dẫn đầu:
45 Days
Năng lực làm việc:
8000L
Kích thước (mm):
7300*2530*2950 mm
Chiều dài cơ sở ( mm ):
3815 mm
Công suất động cơ:
190 HP
Loại động cơ:
4HK1-TCG61
Trục truyền động:
4x2
Hộp số:
MLD gearbox, manual, 6 gears forwards with 1 reverse
Nhận xét:
Jurop pump, Moro pump 4×4, RHD drive is optional

Yêu cầu ngay bây giờ

Trong lĩnh vực vệ sinh đô thị, Isuzu light duty 8 000L s ewage tank truck has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a high quality 4HK1 engine with a maximum horsepower of 190 HP, and a powerful vacuum suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 8CBM , and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs.

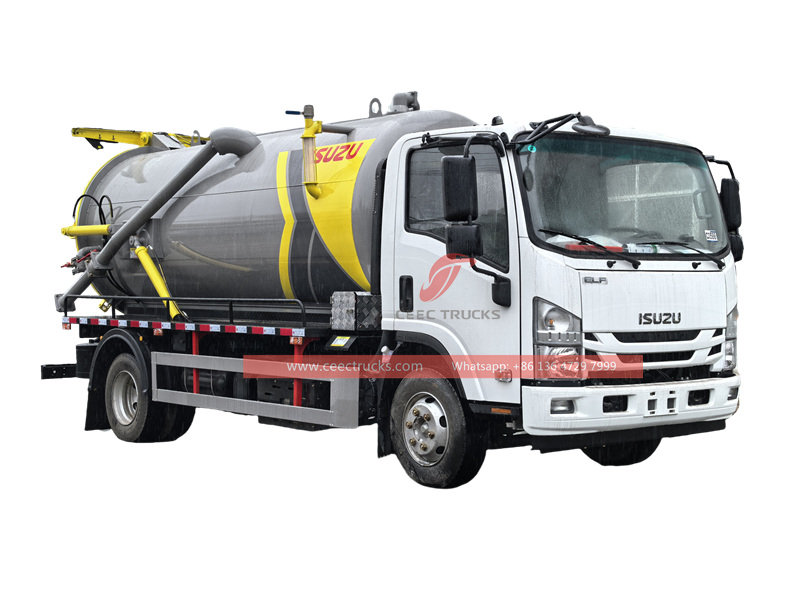

Howo 4x2 sewage tank truck

✦ Product Introduction of Isuzu Sewage Tank Truck « « «

Manufacturer: CEEC TRUCKS GROUP

Product Features:

☛ Isuzu light 4x2 chassis with stronger power 4HK1 190HP engine.

☛ Suctioning,displacing(option),transporting and discharging dry,wet and hazardous substances, such as sluge sand,(roof) gravel, fly ash, powders and various types of liquids.

☛ The powerful tri-lobe blower gives the vacuum tanker with cyclone separator a very high suction and displacement capacity.

☛ Self-cleaning cyclone separation keeps the cyclones dust free at all times.

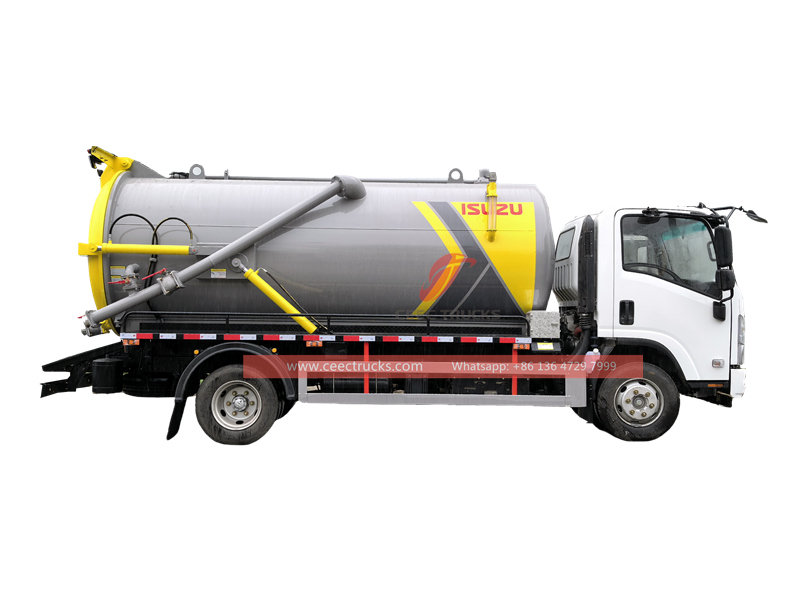

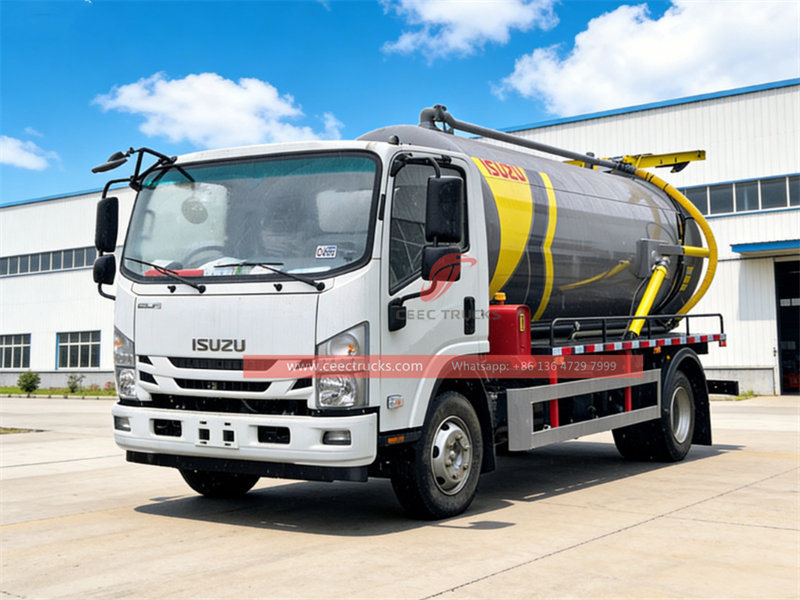

Howo 4x2 light sewage tank truck

✦ Product Parameter of Isuzu Vacuum Sewer Truck « « «

Howo 4x2 light sewage tank truck

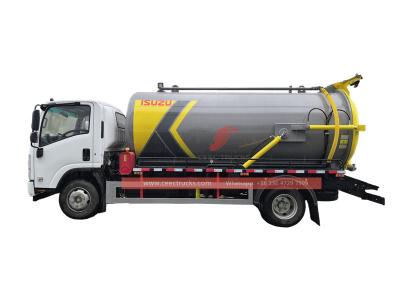

Isuzu 8000L vacuum sewage truck
Vehicle Description
Overall dimensions	73 002 53 0 29 50mm
GVW	180 00kg
Curb weight	9350 kg
Sewage tank (m3)	8
Drive system	4 * 2
Chassis Description
Chassis brand	Isuzu
Steering	LHD
Cab	Howo ,single row, 2 seats,with A/C
Wheelbase	3815 mm
Tire specification	235/75 R 17.5
Tire quantity	6 tires and 1 spare tire
Engine	Engine model	4HK1
	Emission level	EURO 6
	Displacement	5.2 L
	Horse power	190 HP
	Weight	960 Kg
	Fuel	Diesel
Gear box	Model	Isuzu MLD
	Number of gears	6 speed
Brake system	Air break
Axle	Front	3 . 5 T
	Rear	8 T
Fuel tanker	Type	Steel
	Capacity	100 L
Tanker Description
Tanker	Capacity	8 000 Liters
	Material	6 mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical
Pump	Type	Water circulation pump
	Flux	4 8(L/S)
	Rating speed	7 00~ 9 00(r/min)
	Shaft power	5(kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
Pipe	Suction and discharge pipe
Special function	Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45°

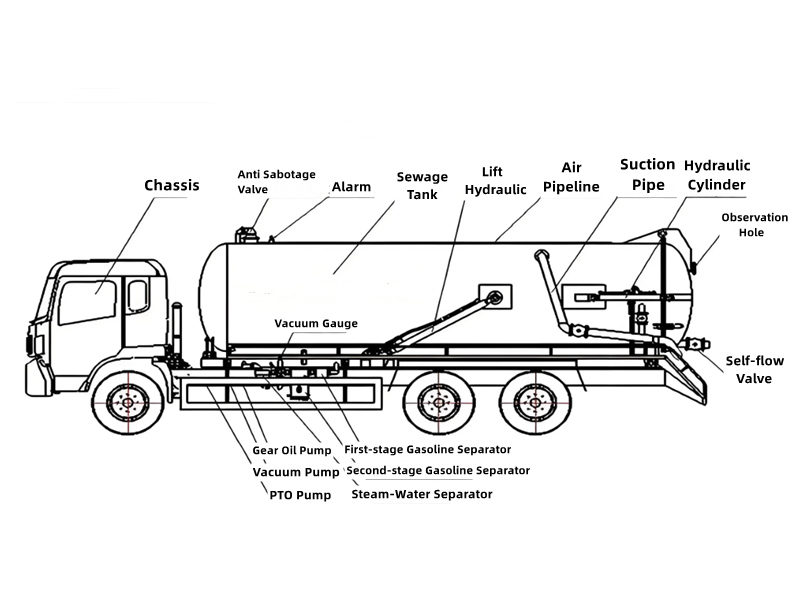

Standard configuration	Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel. Vacuum pump : China or Italy vacuum pumps. Anti rust coating inside tank

Howo sewage tank truck

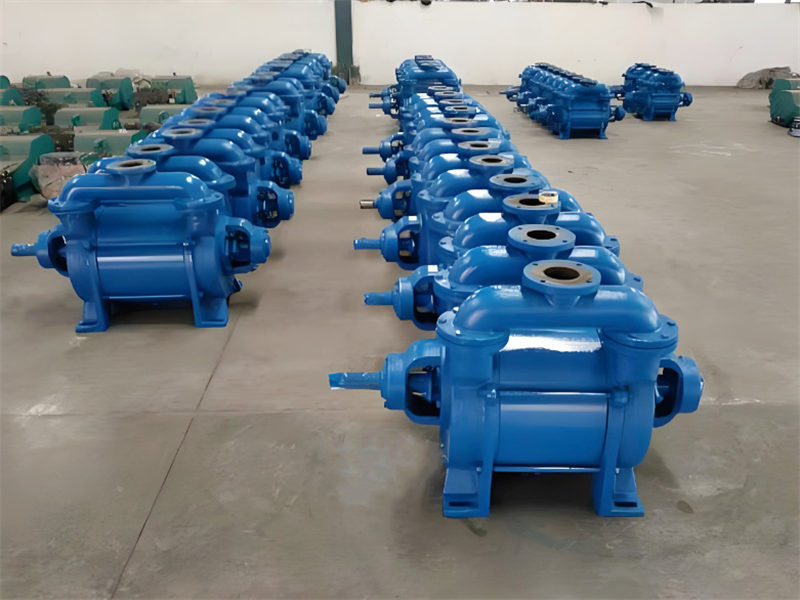

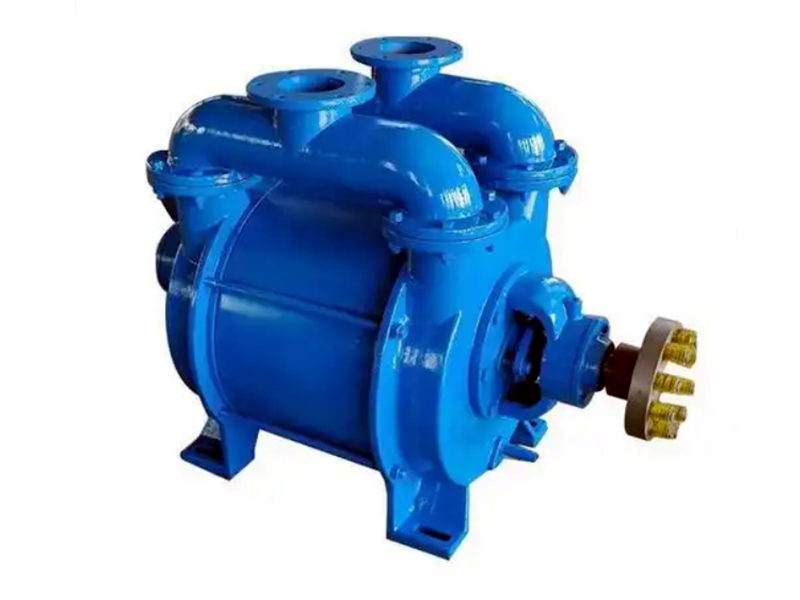

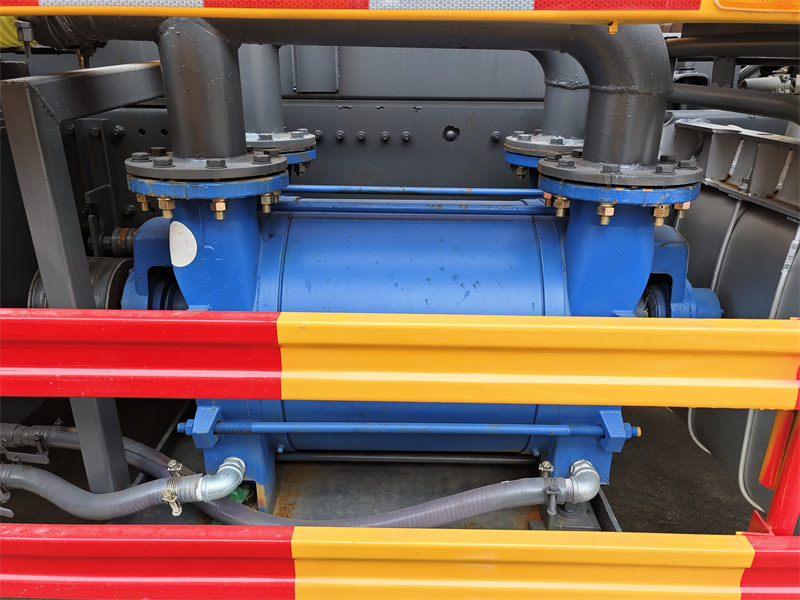

✦ Key Component: Sewage Pump « « «

1. SK pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.

2. Key components of SK pumps , are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.

3. SK pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.

Specification	Unit	Value
Free air capacity	cfm	435
Air capacity at 15" Hg/50% vacuum	cfm	489
Max. Vacuum	Hg (in.)	2 4
Max. Pressure	psig	2 3
Power required at 15" of vacuum	hp	15
Power required at max. pressure	hp a	25
Max. speed	rpm	9 00
Working speed	rpm	7 00
Oil tank capacity	lt	4.8
Oil consumption	Gr/h	19 0
Sound pressure at 7 meters (23 ft) 60% vacuum	dB	70
Hose	in	3/4
Flange	in	-
Weight	lbs	486

✦ Paint Anti-Corrosion Process « « «

♦ Tank design Use corrosion-resistant materials (such as stainless steel, carbon steel + anti-corrosion coating) .

♦ Inner wall treatment, spray epoxy resin or polyurethane coating, thickness ≥ 200μm, acid and alkali corrosion resistance.

♦ S andblasting and rust removal, spray anti-rust primer + polyurethane topcoat, suitable for complex outdoor environments.

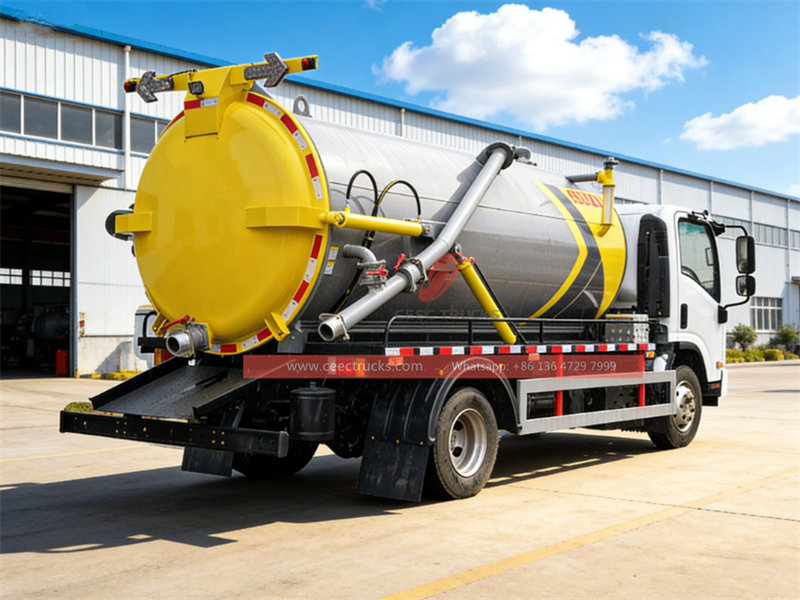

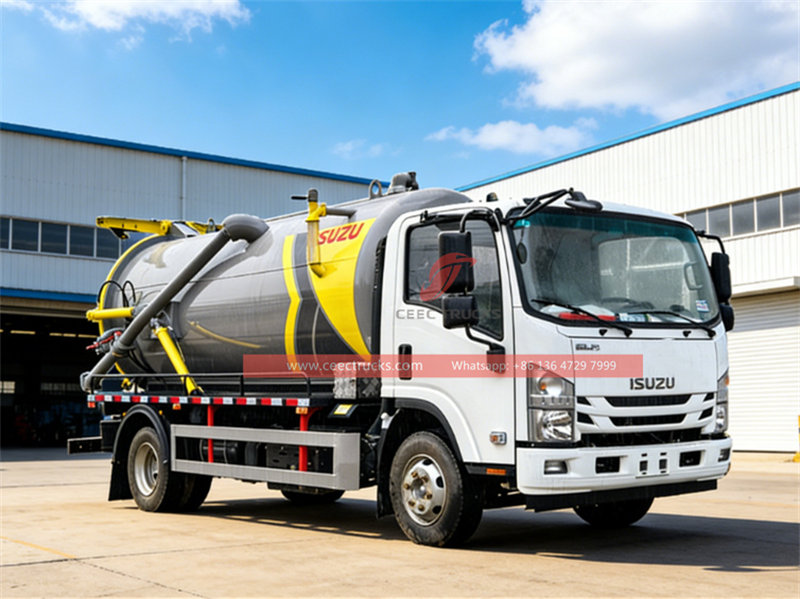

Isuzu light vacuum sewage tank truck

✦ Tank Sealing Of Isuzu Light Sewage Tanker « « «

♦ T he tank body welding must use argon arc welding or laser welding to ensure that the weld is uniform and free of pores.

♦ Annealing treatment is required after welding to eliminate welding stress and avoid deformation and cracking.

♦ For tank body welding, the weld must pass flaw detection (such as X-ray or ultrasonic testing).

♦ Wave-breaking plates (bulkheads) are installed to reduce the impact of liquid sloshing on the stability of the Howo sewage tank truck.

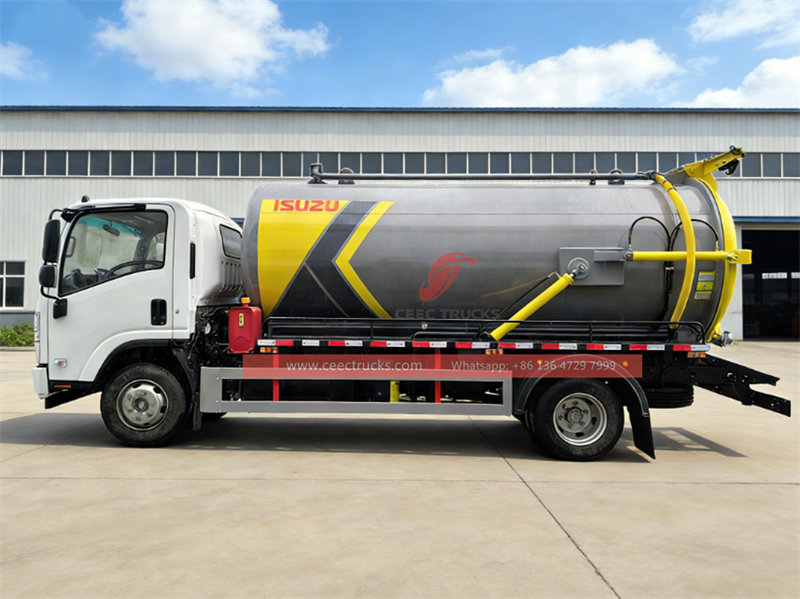

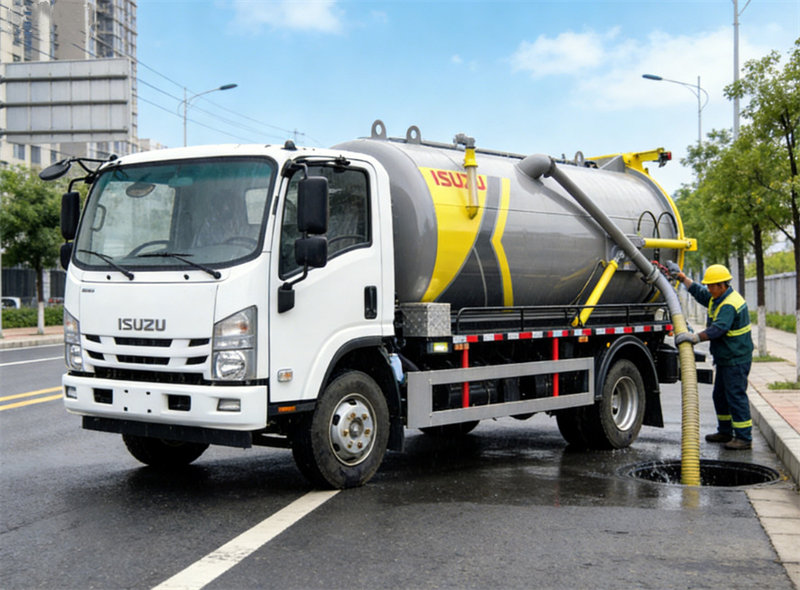

Isuzu vacuum sewage tank truck

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5. promptly delivery. any order is welcome.

We CEEC TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

★ Loại Euro 6, động cơ siêu mạnh mẽ

★ Vacuum pump super powerful, efficient pump in and out

★ 12 months fast moving spare parts for FREE

★ Authorized Isuzu sewage suction trucks exporter

★ Training service for Isuzu sewer cleaner trucks

Isuzu vacuum sewage tank truck

CEEC TRUCKS là nhà xuất khẩu hàng đầu xe hút chân không Howo tại Trung Quốc. Chúng tôi có hơn 10 năm kinh nghiệm xuất khẩu xe hút chân không. Chúng tôi đảm bảo thời gian giao hàng nhanh chóng và bảo hành 12 tháng cho xe vệ sinh cống rãnh của mình. Xe bồn hút chân không của chúng tôi được bán cho hơn 80 quốc gia, bao gồm Đông Âu và các nước CIS, Châu Phi, Đông Nam Á, Trung và Nam Mỹ, Trung Đông, v.v.

---- Professional guidance on your importing documents.

---- Maximize save your sea freight.

---- Safety, Quickly, Timely

CEEC garbage compactor truck factory review

---- Service more than 60 countries.

---- Professional guidance on your importing documents.

---- CO, FORM E, FORM P, Pre-shipping Inspection...

export documents
